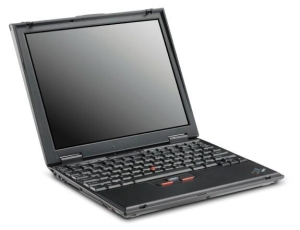

IBM ThinkPad X20
Jump to navigation
Jump to search

General Specs
- Model Number:
- Processor: Intel Mobile Celeron 500 MHz or Intel Mobile Pentium III 600 MHz
- Memory: 64 or 128MB PC-100 memory standard (max 320MB)
- HDD: 10 or 20GB HDD
- Graphics: ATI Rage Mobility M with 4MB
Devices
Chipset:
Component | Name | HardwareID | Status | Driver |
---|---|---|---|---|
Chipset | Intel 82371AB/EB/MB PIIX4 ACPI | 8680:7113 | ![]() |
APM, ACPI |
IDE controller | Intel 82371AB/EB/MB PIIX4 IDE | 8086:7111 | ![]() |
IBM, Danis |
Audio | Cirrus Logic Crystal CS4281 PCI Audio | 1013:6005 | ![]() |
Uniaud |
Video | ATI Rage Mobility AGP 2x Series | 1002:4C4D | ![]() |
SNAP Graphics |
Network | Intel PRO/100 SP Mobile Combo Adapter | 8086:1031 | ||
Wireless Network | Intel PRO/Wireless 2200BG [Calexico2] Network Connection (This Wifi card was not on the original configuration) |
8086:4220 | ![]() |
GenMU |
USB | Intel 82371AB/EB/MB PIIX4 USB | 8086:7112 | ![]() |
USB |
CardBus | Ricoh RL5c476 | 1180:0476 | ![]() |
Not supported |
CF Card | Ricoh RL5c476 II | 1180:0476 | Not supported |
